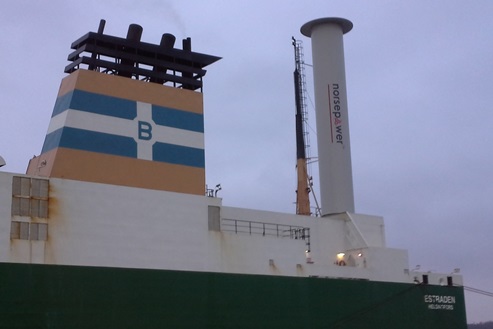

The Rotor sail system was installed on the 9,700 DWT Ro-Ro carrier M/V Estraden at the end of 2014 and the vessel has operated in continuous service between the Netherlands and the UK, sailing through the North Sea at speeds of 16 knots.
The trials were measured and analysed with continuous monitoring systems from maritime data analysis, software and services provider, NAPA and VTT Technical Research Centre of Finland. VTT Technical Research Centre of Finland collected data over a six-month period, during which both the Rotor Sail technology and automation system was operational 99% of the time. The results confirmed that the Rotor Sail is able to produce large amounts of thrust force, which enables considerable fuel savings.
The sea trials onboard M/V Estraden, verified by NAPA and supported by VTT Technical Research Centre of Finland, confirm fuel savings of 2.6% using a single small Rotor Sail on the vessel’s route in the North Sea. Based on the trials, Norsepower and Bore believe that a full system on M/V Estraden with two rotors has the potential to deliver 5% efficiency savings on an ongoing basis. Norsepower forecasts savings of 20% for vessels with multiple, large rotors travelling in favourable wind routes.
Reinforcing VTT’s findings, NAPA conducted a randomised trial that found clear and significant savings, despite largely calm weather conditions throughout the study. After establishing a baseline profile of the vessel in normal operation, the Rotor Sail was activated and de-activated at random intervals to verify that any measured effect was solely due to the sail, and that any benefit was measurable across the vessel’s operating profile. The trial was conducted using ClassNK-NAPA GREEN, the vessel performance monitoring and verification software developed by NAPA and ClassNK.
Tuomas Riski, CEO, Norsepower, says, “The successful trials of our wind technology are a ground-breaking moment not only for Norsepower, but also the wider development of wind propulsion technology for shipping. The results suggest that when Norsepower’s technology is implemented at scale, it can produce up to 20% net savings in fuel costs with a payback period of less than four years at current fuel prices, confirming that wind technologies are commercially viable solutions that reduce fuel and carbon emissions in the industry.”
Jörgen Mansnerus, Vice President Marine Management, Bore, says, “We are proud to be the first shipowner to install the Norsepower Rotor Sail, and demonstrate that wind propulsion technology has verifiable 5% fuel savings on a yearly basis, can be retrofitted without any off-hire costs, and is extremely easy to use in practice. It’s our goal to find ways to establish sustainable shipping with minimal impact on our environment.”
Esa Henttinen, Executive Vice President, NAPA, says, “As impartial data analysis and verification is vital for charterers and shipowners looking to retrofit efficiency technology onto vessels, we used both randomised trialing and advanced statistical modeling to ensure objective results. The Rotor Sail offered clear savings against this criteria and adds to a growing list of innovative eco-efficiency technologies that have proved themselves through robust data collection and advanced analytics.”
